MargDeep – LoRaWAN Light Control Unit​

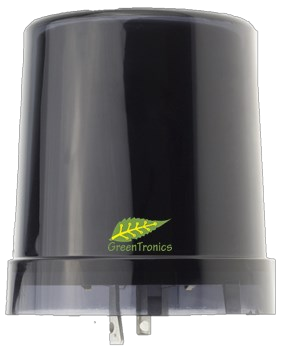

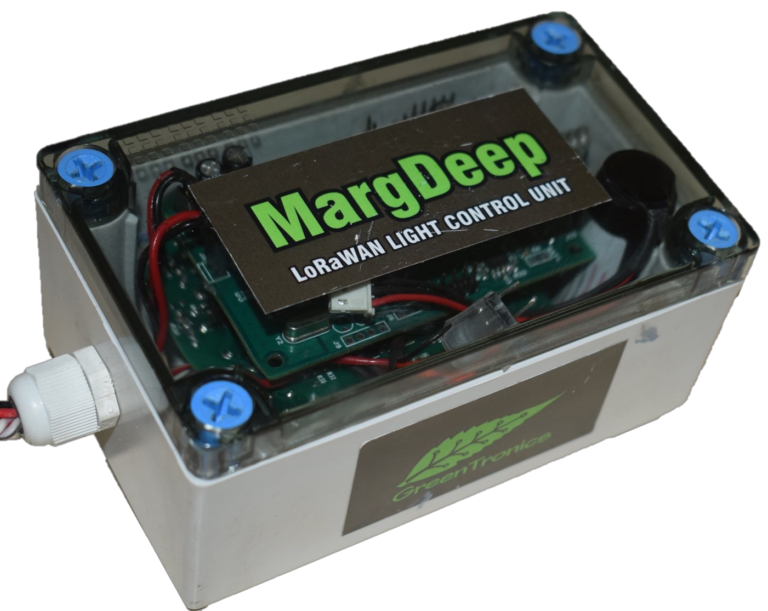

MargDeep is a Light Control Unit (LCU). It is an add-on control unit that brings connectivity electrical energy measurement and luminosity control to any standard dim-able street light luminaries.
It has interfaces for light dimming control, communication modules and multiple sensors – enabling the system integrator to work with any vendor and make of LED luminaries. The system is designed to be radio agnostic to interface any proprietary or open networking radio modules. MargDeep has variants with higher Tx power +27dBm for longer range and lower Tx power +19dBm for power constrained systems.

Dusk to Dawn
Dim Profile
Energy Dim
Protection
Connect

Specifications

Parameter Specification
Diameter 76 mm
Height 96 mm
Weight
IP Rating IP 65
Parameter Specification
Operation Voltage 85V to 300V
Power
Surge Protection 10KV
Power consumption
Sensor  Number  Type
Light Sensor 1 Analog
PIR Sensor Up to 4 Discrete
Humidity 1 Digital
Temperature 1 Digital
LLCU implements a Class 1 meter.
Parameter  Units
Supply Voltage V
Supply Current A
Power Factor %
Frequency Hz
Power
Active W
Reactive VAR
Energy
Active Wh
Reactive VARh
Parameter  Specification
Physical Layer LoRa (SemTech)
MAC LoRaWAN
Tx Power Up to +27dBm
Rx sensitivity -135 dBm
Range Up to 15km*
Class Class C
*depends on various factors including location and surroundings.
Parameters
Voltage Current
Energy Power Factor
Lux Level Lamp Burn time
Controller Burn time Lamp On/Off cycles
Alerts
Lamp failure Mains failure
Under Voltage Over Voltage
Over current Under current
Low PF Reporting time

Ordering Information

This document describes the complete set of all the possible features of the LCU. Variants of this set are available to meet the specific needs of the project. Ordering code clearly specifies the product variant for manufacturing. Ordering code format is described below:
GMD – CC – M – SS – FFF – P – E – L
GMD LoraWAN Light Control Unit
– Separator
CC OO ON/OFF
UU UART
AA 0-10V Analog
PP PWM
DL DALI
– Separator
M 0 No Energy Meter
1 Class 1 Energy meter
– Separator
SS NN No sensors
LL Ambient Light Sensor only
TT Temperature only
LT Ambient Light and Temperature
MS Motion Detector
AA ALS, Humidity and Temperature
– Separator
FFF NNN Frequency in MHz
– Separator
P 0 Tx.Pwr = 18.5dBm
1 Tx.Pwr = 27dBm
– Separator
E 0 Non-NEMA
1 NEMA 7 pin male
2 No enclosure, PCBA only
C CCMS enclosure unit
– Separator
L 1 Single Light
2 2 Arm / 2 Lights
Ex: GMD-OO-1-LL-865-0-1-1 implies the following features:
  • On/Off control
  • Class 1 Energy Meter
  • Ambient Light sensors
  • Uses 865MHz ISM band
  • 18.5 dBm transmission power
  • NEMA 7 pin male connector
  • Single Arm / Light Control

Application Server

Previous
Next

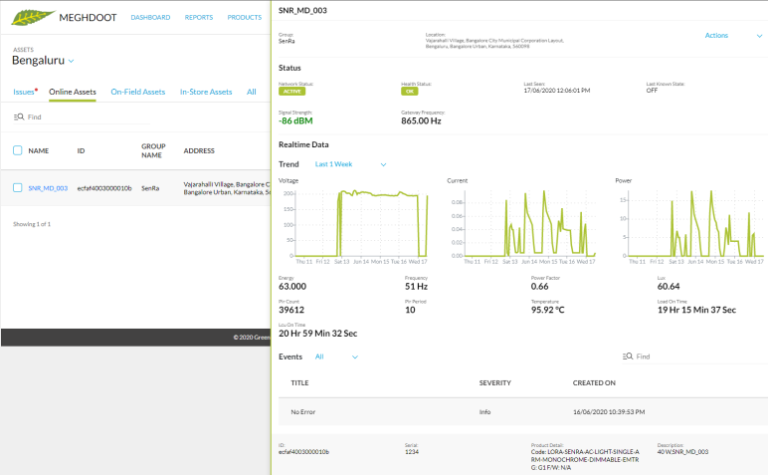

MargDeep works seamlessly with “MeghDoot” Application Server built for LoRaWAN street lights. MeghDoot brings data visualization and analytics and develop insights into usage, savings and failure.

MeghDoot App server provides:

  • Installation and commissioning App
  • Asset Tagging

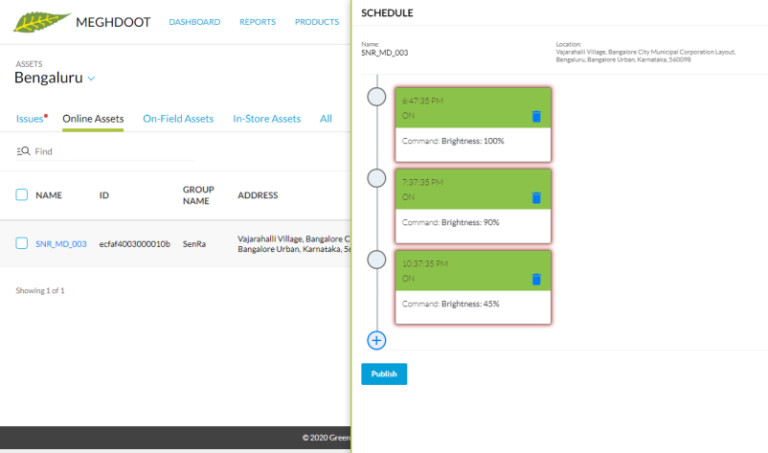

  • Lighting Schedule Interface
  • Failure reports and notifications
  • Email and SMS alerts
  • Light Grouping
  • Search and Filtering options

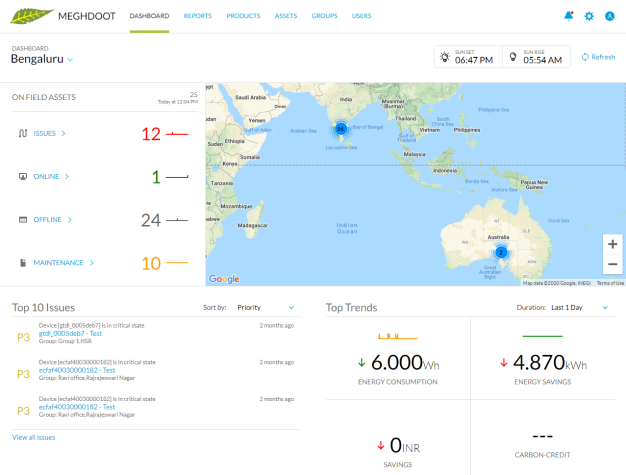

  • Dashboard with data visualizations
